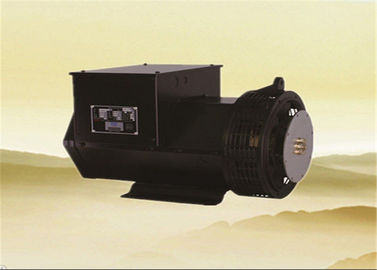

Double Bearing Three Phase Alternators 25kw 31.3kva 12 / 6 Wire

Double Bearing Three Phase Alternators 25kw 31.3kva 12 / 6 Wire

  • Double Bearing Three Phase Alternators 25kw 31.3kva 12 / 6 Wire
Double Bearing Three Phase Alternators 25kw 31.3kva 12 / 6 Wire
পণ্যের বিবরণ:
উৎপত্তি স্থল: Wuxi,China
পরিচিতিমুলক নাম: Werna
সাক্ষ্যদান: CE,ISO9001,SASO
মডেল নম্বার: WR184G
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 5pcs
মূল্য: negotiation
প্যাকেজিং বিবরণ: Plywood
ডেলিভারি সময়: Within 10 days
পরিশোধের শর্ত: T/T
যোগানের ক্ষমতা: 1000units/month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Rated Voltage: 190-454v Frequency: 50HZ
speed: 1500rpm Mounting dimensions: Stamford Type
life time: more than 20 years TIF: <50
লক্ষণীয় করা:

brushless ac generator

,

brushless synchronous generator

Three Phase Double Bearing Alternators Electric 25kw 31.3kva 12 / 6 Wire

Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

25KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

110V~690V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4)  Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
8) Overload standard according to NEMA.
9) All generator statore are wound to 2/3 pitch.

 Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
Double Bearing Three Phase Alternators 25kw 31.3kva 12 / 6 Wire 0
