16kw / 20kva 3 Phase Electric Alternators Stamford Type 2 Years Warranty

16kw / 20kva 3 Phase Electric Alternators Stamford Type 2 Years Warranty

  • 16kw / 20kva 3 Phase Electric Alternators Stamford Type 2 Years Warranty
16kw / 20kva 3 Phase Electric Alternators Stamford Type 2 Years Warranty
পণ্যের বিবরণ:
Place of Origin: Wuxi,China
পরিচিতিমুলক নাম: Werna
সাক্ষ্যদান: CE,ISO9001,SASO
Model Number: WR184ES
প্রদান:
Minimum Order Quantity: 5pcs
মূল্য: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Wire: 100% copper wire Warranty: 2 years
Life time: 20 years Color: Optional
Protection: IP22/23 Insulation class: H
লক্ষণীয় করা:

brushless ac generator

,

brushless synchronous generator

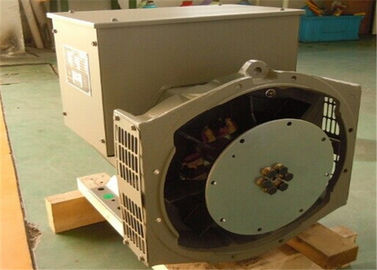

16kw / 20kva 3 Phase Electric Alternators For Diesel Generator Set Stamford Type
Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

16KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

190V~454V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
8) Overload standard according to NEMA.
9) All generator statore are wound to 2/3 pitch.

 Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. Good after-sale service
