28kw 35KVA Electric Generator 3000rpm 220v Alternator Three Phase

28kw 35KVA Electric Generator 3000rpm 220v Alternator Three Phase

    • 28kw 35KVA Electric Generator 3000rpm 220v Alternator Three Phase
  • 28kw 35KVA Electric Generator 3000rpm 220v Alternator Three Phase

    পণ্যের বিবরণ:

    Place of Origin: Wuxi,China
    পরিচিতিমুলক নাম: Werna
    সাক্ষ্যদান: CE,ISO9001,SASO
    Model Number: WR182J

    প্রদান:

    Minimum Order Quantity: 1 pcs
    মূল্য: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Manufacturer: Wuxi City ,Jiangsu Prov ,China making alternators Output Type: AC Three Phase & 3 Phase diesel generators
    Rated Voltage: 190-454v Winding Pitch: 2 / 3 pitch
    Excitation: Brushless, self-excited, synchro Rated Current: as per voltage: as per voltage
    লক্ষণীয় করা:

    self-excited ac generator

    ,

    brushless ac alternator

    28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase



    Quick Detail:

    Name

      Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

              28kw

    Certificate

    CE,ISO9001,SASO




    Specifications:

    Model

    WR182J

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Three Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    190-454V

    Frequency

    50HZ

    Speed

    3000RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H


    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP23
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.


    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service





    Technical data

    Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
    380V~415V
    KVA KW mm kgs mm
    WR164A 8.1 6.5 373.16 9.98 65
    WR164B 11 8.8 373.16 11.18 80
    WR164C 13.5 10.8 400.16 11.6 100
    WR164D 1 12.8 400.16 11.88 115
    WR184E 22.6 18 440.16 14.72 150
    WR184F 27.5 22 530.16 16.2 190
    WR184G 31.3 25 530.16 17.8 230
    WR184H 37.5 30 673.3 19.21 255
    WR184J 40 32 673.3 20.48 285



    Werna Type 3Phase 60Hz 1800rpm Shaft length Copper total weight Core length
    208V~480V
    KVA KW mm kgs mm
    WR164A 10.2 8.2 373.16 9.98 65
    WR164B 13.8 11 373.16 11.18 80
    WR164C 16.9 13.5 400.16 11.6 100
    WR164D 20.2 16 400.16 11.88 115
    WR184E 28.8 23 440.16 14.72 150
    WR184F 34.4 27.5 530.16 16.2 190
    WR184G 37.5 30 530.16 17.8 230
    WR184H 46.9 37.5 673.3 19.21 255
    WR184J 50 40 673.3 20.48 285

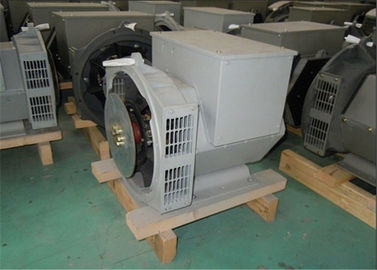

    Production line
    28kw 35KVA Electric Generator 3000rpm 220v Alternator Three Phase 028kw 35KVA Electric Generator 3000rpm 220v Alternator Three Phase 1
