Three Phase AC Generator

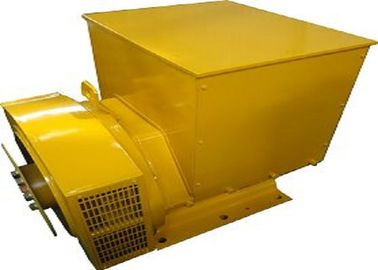

Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty

সকল বিভাগ

Brushless Synchronous Generator

Three Phase Brushless Alternator

Three Phase Synchronous Generator

Brushless Exciter Synchronous Generator

Small Brushless Alternator

আমাদের সাথে যোগাযোগ

Mr. Terry

terry@werna.cn

+86 13921153926

এখনই যোগাযোগ করুন

Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty

ব্র্যান্ড নাম:	Werna
মডেল নম্বর:	WR274J
MOQ.:	5pcs
মূল্য:	negotiable
প্যাকেজিংয়ের বিবরণ:	Plywood
অর্থ প্রদানের শর্তাবলী:	T/T

বিস্তারিত তথ্য

পণ্যের বর্ণনা

বিস্তারিত তথ্য

Place of Origin:

Wuxi,China

সাক্ষ্যদান:

CE,ISO9001,SASO

Supply Ability:

1000units/month

বিশেষভাবে তুলে ধরা:

3 phase ac generator

three phase alternator

পণ্যের বর্ণনা

Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty

Quick detail:

Name	ALTERNATOR	Brand Name	WERNA
Color	According to the international standard color card	Feature	AC brushless synchronous excitation alternator
Power	225KW	Certificate	CE,ISO9001,SASO

Specication:

manufacture	Wuxi City ,Jiangsu Prov ,China making alternators
Output type	AC Three Phase Brushless generator
Terminal	12 / 6 Wire
Rated Voltage	208V~480V
Frequency	60Hz
Speed	1800RPM
Mounting Dimension	Stamford Type
Winding pitch	2/3 pitch
Excitation	Brushless, self-excited, synchro
Insulation Class	H

Parameter:

Werna Type	3Phase 50Hz 1500rpm		Shaft length	Copper total weight	Core length
	380V~415V		Shaft length	Copper total weight	Core length
	KVA	KW	mm	kgs	mm
WR274C	100	80	758	41.24	165
WR274D	120	91	758	47.64	205
WR274DL	125	100	758	49.2	215
WR274E	140	112	873	52.21	230
WR27EL	150	120	873	53.1	250
WR274F	160	128	873	54.81	285
WR274G	181	145	923	62.11	335
WR274H	200	160	963	67.91	375
WR274J	230	184	1006.6	74.61	450
WR274K	250	200	1006.6	76.1	450

Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.

Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Why to choose Werna Alternator/generator?

1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Stamford Type Three Phase AC Generator 225kw / 281kva , Two Year Warranty 0
